What Pipes Should You Use for the Underground Drainage System of Your Layout?
When developing a residential layout, commercial plot, or industrial complex, the underground drainage network is one of the most critical investments you will make. It works quietly below the surface to evacuate wastewater, storm runoff, and sewage. Choosing the wrong piping material can lead to frequent blockages, pipe collapse from vehicle weight, and ground contamination.
Selecting the right piping system ensures a leak-proof layout that operates smoothly for decades without costly dig-ups or repairs.

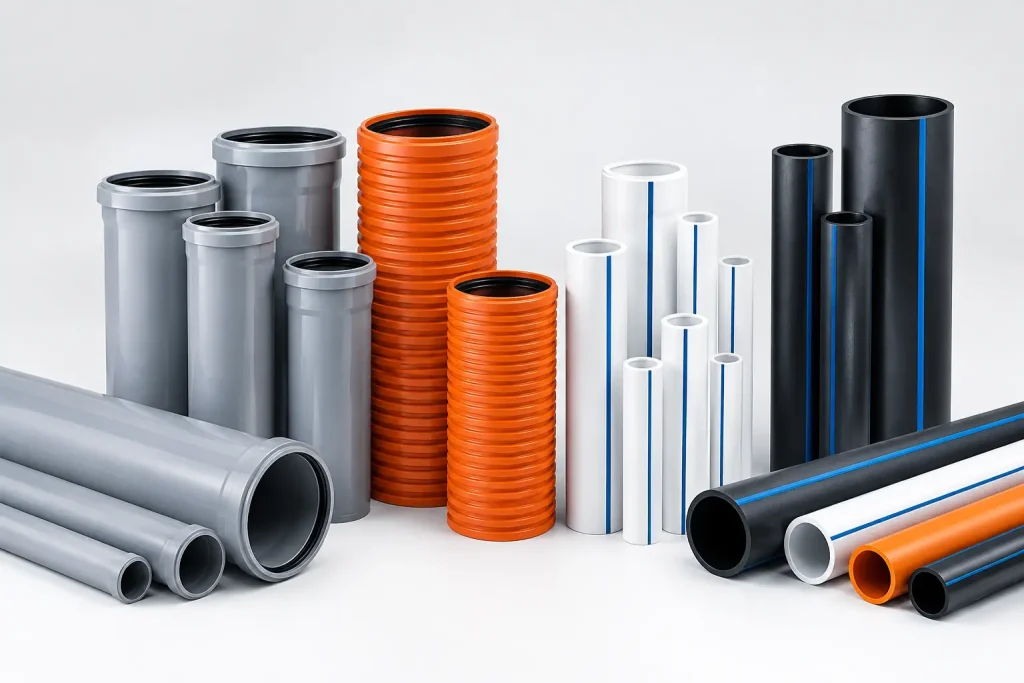

Modern Types of Pipes for Underground Drainage
Traditional concrete, RCC, and stoneware pipes are rapidly being replaced by modern plastic piping systems. Modern options offer superior joint integrity, lighter weight, smooth internal flow, and exceptional resistance to soil chemicals.
1. Eco-Drain Pipes (Structured Wall PVC Pipes)
Eco-Drain pipes are engineered structured-wall uPVC pipes designed specifically for non-pressure underground sewerage and drainage applications.
- Design: They feature a smooth interior wall for high fluid velocity and a structured outer wall that provides high ring stiffness with reduced weight.
- Best Used For: Township layouts, main sewer lines, and stormwater networks subject to heavy soil and surface traffic loads.
2. Foam Core Pipes
Foam Core pipes are advanced multi-layer uPVC pipes designed with a unique “sandwich” technology.
- Design: The outer and inner layers consist of rigid, tough uPVC, while the middle layer is made of foamed uPVC.
- Benefits: The foamed middle layer absorbs physical stress and structural vibrations while reducing the overall weight by up to 30%. This makes them cost-effective, easy to handle, and exceptionally strong under pressure.
- Best Used For: Underground residential drainage, branch sewer lines, and commercial layout networks.
3. Solid Wall uPVC Pipes (Nu-Drain)
Solid wall uPVC pipes feature a uniform, solid construction throughout the pipe body.
- Design: Built strictly to IS standards (like IS 15328), these pipes offer high tensile strength and complete chemical immunity against aggressive wastewater.
- Best Used For: Heavy-duty underground sewerage connections, industrial effluent disposal, and deep trench installations.
Comparison of Underground Drainage Pipe Options
| Feature | Eco-Drain Pipes | Foam Core Pipes | Solid Wall uPVC Pipes | Traditional Concrete Pipes |
|---|---|---|---|---|
| Structure | Structured outer wall, smooth inner bore | 3-Layer sandwich (Foam middle layer) | Solid rigid uPVC wall | Porous concrete/cement |
| Weight | Extremely lightweight | Very lightweight | Moderate weight | Very heavy (requires machinery) |
| Ring Stiffness | High (SN4 / SN8 rated) | Moderate to High (SN2 to SN8) | Very High | High, but brittle under impact |
| Leak-Proofing | Rubber ring "Click" seals | Elastomeric ring jointing | Rubber ring / solvent cement | Cement mortar (prone to cracking) |
| Corrosion Risk | 100% rust & chemical proof | 100% rust & chemical proof | 100% rust & chemical proof | High risk from H2S sewage gas |
| Lifespan | 50+ Years | 50+ Years | 50+ Years | 15–25 Years (frequent maintenance) |
Crucial Factors to Consider Before Buying Pipes for Your Layout
- Ring Stiffness (SN Rating): Underground pipes must withstand the earth load above them and the dynamic pressure from vehicles driving overhead. Ensure you select pipes rated for SN4 (for standard depths) or SN8 (for main roads and deep trenches).
- Joint Mechanism: Always opt for flexible elastomeric rubber ring joints over rigid glued joints. Rubber seal joints accommodate soil settlement, thermal expansion, and earth movement without popping open or leaking.
- Smooth Flow Velocity: A smooth internal bore prevents sludge accumulation, preventing clogs and minimizing costly maintenance cleanouts over the lifetime of the project.
Why Buy Supreme Underground Drainage Products from Leenus India?
Choosing the right pipe is only half the battle; sourcing genuine, certified products with proper project support is what guarantees success.
Leenus India is an authorized distributor and contractor for Supreme Industries, India’s leading manufacturer of advanced piping and drainage technologies.
Here is why developers and contractors trust Leenus India for their layout projects:
- Authorized Supreme Partner: We supply 100% original, IS-certified Supreme products including Eco-Drain, Foam Core, Nu-Drain solid wall pipes, and readymade “Ultra” inspection chambers.
- Complete System Availability: Beyond pipes, we supply a comprehensive system including bends, tees, gullies, backflow valves, and pre-fabricated plastic manholes for a 100% watertight network.
- Turnkey MEP & Infrastructure Support: As experienced MEP contractors, our team does not just sell pipes – we assist with layout design, material estimation, video pipe inspection, and on-site guidance.
Plan Your Layout Drainage with the Experts
Building a dependable underground drainage network requires precision, quality materials, and expert guidance.
Get in touch with Leenus India today! Whether you need a quote for Supreme Eco-Drain and Foam Core pipes or complete MEP contracting support for your upcoming layout, our team is ready to assist you. Visit leenusIndia to speak with an MEP specialist.
Frequently Asked questions (FAQ's)
Structured-wall uPVC pipes like Eco-Drain, Foam Core, and solid wall uPVC (Nu-Drain) are the best modern choice for underground drainage. They offer high ring stiffness, leak-proof rubber ring joints, 100% resistance to rust and chemicals, and a lifespan of 50+ years - far outperforming traditional concrete or RCC pipes.
Underground drainage pipes should be rated SN4 for standard installation depths or SN8 for main roads and deep trenches. The SN (ring stiffness) rating determines how well a pipe withstands earth load and dynamic pressure from vehicles driving overhead.
Flexible elastomeric rubber ring joints accommodate soil settlement, thermal expansion, and ground movement without popping open or leaking. Rigid glued joints can't flex with these natural shifts, making them more prone to failure over time.
Leenus India is an authorized distributor and contractor for Supreme Industries, supplying 100% original, IS-certified products including Eco-Drain, Foam Core, and Nu-Drain pipes, along with fittings, chambers, and turnkey MEP support. Visit leenusindia.com for a quote.
